Floorplan - 2016 Grand Design Reflection 30BH
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 24

- List Price: $31,700
Payments From:
$309 /mo.
-
Sleeps 6
-
3 Slides
-
BunkhouseFront Bedroom
-
33ft Long
-
9,105 lbs

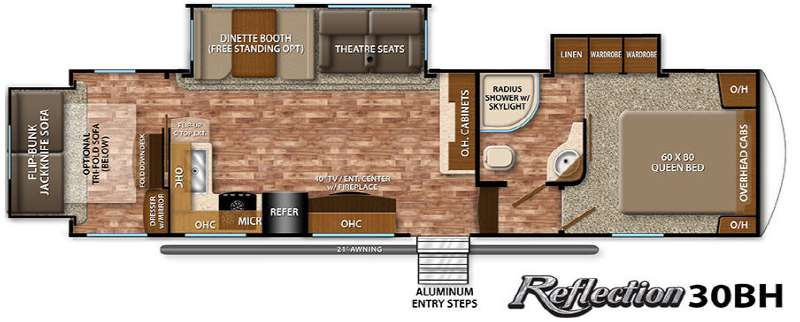

30BH Floorplan
30BH Floorplan
Specifications
Specifications
Sleeps | 6 | Slides | 3 |
Length | 33 ft 5 in | Ext Height | 12 ft |
Hitch Weight | 1625 lbs | GVWR | 11995 lbs |
Dry Weight | 9105 lbs | Fresh Water Capacity | 60 gals |
Grey Water Capacity | 86 gals | Black Water Capacity | 43 gals |
Furnace BTU | 40000 btu | VIN | 573FR342XG3306797 |
Description
Description
This Grand Design Reflection Super Lite fifth wheel model 30BH offers triple slides for added space with a rear bunkhouse, and so much more!
Step inside and find an open concept kitchen and dining space. There is a counter area straight in the door along the interior wall with overhead cabinets for storage. Opposite the door side find seating with a slide out theater seat for two, and a booth dinette. You can choose to add a free standing dinette IPO the theater seats if you like.
To the left of the entry door enjoy the 40" TV with entertainment center and fireplace. This same side features the kitchen which continues along the curb side wall. Here you will easily be able to cook for your family with the amenities provided. There is a refrigerator, a three burner range with overhead microwave oven, and a large sink for cleaning up. You will find plenty of storage with overhead cabinets, and lower cupboards and drawer space too. There is even a counter extension on the end of the L-shaped counter next to the sink when needed.
At the very rear of this unit you will find a private bunkhouse with sliding pocket door. Here you will find a slide out flip-up bunk above a jackknife sofa. You can choose an optional tri-fold sofa if you like in place of the jackknife one. There is also a fold down desk and dresser with mirror along the interior wall.
Back through to the main door head up the steps to a side aisle bath and front master suite. The bath on your left offers a radius shower with skylight, toilet, and vanity with sink. The sliding pocket door in the bathroom allows you access to the master bedroom and puts the linen closet section of the bedroom slide within the bath when extended.
In the front bedroom relax and rest up for a new day on the queen size bed provided. There are overhead cabinets above the head of the bed, and storage on either side as well. The slide out wardrobes and linen cabinet create more walking around space inside, plus so much more!
Step inside and find an open concept kitchen and dining space. There is a counter area straight in the door along the interior wall with overhead cabinets for storage. Opposite the door side find seating with a slide out theater seat for two, and a booth dinette. You can choose to add a free standing dinette IPO the theater seats if you like.
To the left of the entry door enjoy the 40" TV with entertainment center and fireplace. This same side features the kitchen which continues along the curb side wall. Here you will easily be able to cook for your family with the amenities provided. There is a refrigerator, a three burner range with overhead microwave oven, and a large sink for cleaning up. You will find plenty of storage with overhead cabinets, and lower cupboards and drawer space too. There is even a counter extension on the end of the L-shaped counter next to the sink when needed.
At the very rear of this unit you will find a private bunkhouse with sliding pocket door. Here you will find a slide out flip-up bunk above a jackknife sofa. You can choose an optional tri-fold sofa if you like in place of the jackknife one. There is also a fold down desk and dresser with mirror along the interior wall.
Back through to the main door head up the steps to a side aisle bath and front master suite. The bath on your left offers a radius shower with skylight, toilet, and vanity with sink. The sliding pocket door in the bathroom allows you access to the master bedroom and puts the linen closet section of the bedroom slide within the bath when extended.
In the front bedroom relax and rest up for a new day on the queen size bed provided. There are overhead cabinets above the head of the bed, and storage on either side as well. The slide out wardrobes and linen cabinet create more walking around space inside, plus so much more!
Features
Features
Standard Features (2016)
Fifth Wheels
Exterior
- Aerodynamic Front Cap with Max Turn Radius
- Marine Grade LED Hitch Light
- LED "Night Lights" Under Bedroom Slide
- One-Touch Automatic Leveling System
- Equa-Flex Rubberized Suspension System
- Correct Track Axle Alignment System
- Aluminum Wheels with E-Rated Tires
- 80% Tint Radius Safety Glass Windows
- Battery Kill Switch in Pass Thru Storage Area
- Extended Pin Box
- 30# LP Bottles (2)
- 30" Radius Entry Door
- Outside Speakers
- Outside Shower
- Factory Installed Roof Ladder
- Under Carriage Spare Tire and Carrier
- High-Capacity Water Pump with Interior and Exterior Switch
- "EZ" Winterize Water Heater Bypass Valve
- "EZ" Siphon Fresh Water Fill Feature
- Extra Large Fresh Water Drain Valve
Interior
- Hand Rubbed Maple Cabinet Doors
- Solid Hardwood Drawer Fronts
- Louvered Tread Steps to Bedroom
- Solid Core Cabinet Stiles
- Pre-drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Tri-Fold Hide-A-Bed Sofa (Model Specific)
- Wall Hugger Theatre Seating
- Deep Overhead Cabinets in Slide Out
- Large Panoramic Slide Room Windows
- Premium Beauflor Flooring with 7-year Warranty
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- LED Lighting Throughout with Motion Sensors (Key Areas)
Construction
- Gel Coated Tan Fiberglass Exterior
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Fiberglass and Thermofoil Roof and Front Cap Insulation
- One-Piece TPO Roof Membrane with 12 Year Warranty
- Easy Access Low Point Drain Valves
- Lamintated Aluminum Framed Rear Wall (R-9)
- Lamintated Aluminum Framed Side Walls (R-9)
- Lamintated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30)
- Residential Wood Framed Roof (R-40)
Kitchen
- Solid Surface LG Brand Countertops
- Gunstock Fixtures and Hardware
- Deep, Undermount Kitchen Sink
- Residential Style Microwave
- Hardwood Galley Slide Trim Moldings and End Caps
- MaxxAir 12v with Rain Sensor
Bathroom
- Neo-Radius Shower Doors (N/A on Bedslides)
- Wide View Skylight Over Shower
- Heat Duct and A/C Vents in Bathroom
- Custom Designed Shower Pan and Surround
- Power Vent Fan
- Extra Large Lav Top with Acrylic Sink
- Large Medicine Cabinet with Mirror
Bedroom
- King Size Wardrobe
- Black Label Pillowtop Mattress
- Oversized Underbed Storage
- Residential Bedspread
- Bedroom Heat Registers
- Closeable A/C Vents
- TV and Cable Prep
Endless Summer Package (Mandatory)
- Residential Cabinetry
- Solid Surface Countertops
- Aluminum "Tread Lite" Entry Steps
- Metal Slam Latch Baggage Doors w/ Magna Latch
- 8cu Double Door Refrigerator
- 17.8 Gal/Hr. Quick Recovery Water Heater
- Porcelain Toilet w/Foot Pedal Flush
- Hi Rise Faucet w/Pullout Sprayer
- Universal All‐In‐One Docking Station
- Black Tank Flush
- Radius Fireplace
Power Package (Mandatory)
- One Touch Electric Awning w/LED Light
- One Touch Electric Front Stabilizer Jacks
- AM/FM/CD/DVD Bluetooth Stereo System
- Hi Definition LED Television (Living Area)
- 50 AMP Electrical Service
- Wired & Framed For 2nd A/C in Bedroom
- Detachable Power Cord w/LED Light
- Power Rear Stabilizer Jacks
Arctic Four Seasons Protection Package
- 35K BTU High Capacity Furnace
- Double Insulated Roof and Front Cap
- Thermafoil Wrapped Frame and Subfloor (beneath main holding tanks)
- Heated and Enclosed Underbelly
- Ducted Heat to Pass Thru Storage Area
- Heated and Enclosed Dump Valves
- Zero Degree Extended Season Enjoyment
Options
- Free Standing Table and Chairs
- Dual Pane Windows
- 12 Cu.Ft. Refrigerator (318RST, 337RLS, 357BHS)
- Tri-Fold IPO Theatre Seating (Bunk models)
- 2nd A/C Low Profile 13.5k BTU Ducted
- King Bed (Bed Slide Models)
Travel Trailers
Construction
- Gel Coated Tan Fiberglass Exterior
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Fiberglass and Thermofoil Roof and Front Cap Insulation
- One-Piece TPO Roof Membrane with 12 Year Warranty
- Easy Access Low Point Drain Valves
- Extra LargeFresh Water Drain Valves
- Laminated Aluminum Framed Rear Wall (R-9)
- Laminated Aluminum Framed Side Walls (R-9)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30)
- Residential Wood Framed Roof (R-40)
Exterior
- Aerodynamic Front Cap with Max Turn Radius
- Aluminum Wheels with E-Rated Tires
- 80% Tint Radius Safety Glass Windows
- Battery Kill Switch in Pass Thru Storage Area
- 30# LP Bottles (2)
- 30" Radius Entry Door
- Outside Speakers
- Outside Shower
- Factory Installed Roof Ladder
- Under Carriage Spare Tire and Carrier
- High-Capacity Water Pump with Interior and Exterior Switch
- "EZ" Winterize Water Heater Bypass Valve
- "EZ" Siphon Fresh Water Fill Feature
- Extra Large Fresh Water Drain Valve
Interior
- Hand Rubbed Maple Cabinet Doors
- Solid Hardwood Drawer Fronts
- Solid Core Cabinet Stiles
- Pre-Drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Tri-Fold Hide-A-Bed Sofa (model specific)
- Wall Hugger Theatre Seating
- Deep Overhead Cabinets in Slide Out
- Large Panoramic Slide Room Windows
- Premium Beauflor Flooring with 7-Year Warranty
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- LED Lighting Throughout with Motion Sensors (Key Areas)
Kitchen
- Solid Surface LG Brand Countertops
- Gunstock Fixtures and Hardware
- Deep, Undermount Kitchen Sink
- Residential Style Microwave
- Hardwood Galley Slide Trim Moldings and End Caps
- MaxxAir 12v Fan with Rain Sensor
Bathroom
- Neo-Radius Shower Doors (N/A on Bedslides)
- Wide View Skylight Over Shower
- Heat Duct and A/C Vents in Bathroom
- Custom Designed Shower Pan and Surround
- Power Vent Fan
- Extra Large Lav Top with Acrylic Sink
- Large Medicine Cabinet with Mirror
Bedroom
- King Size Wardrobe
- Black Label Pillowtop Mattress
- Oversized Underbed Storage
- Residential Bedspread
- Bedroom Heat Registers
- Closeable A/C Vents
- TV and Cable Prep
Power Package (Mandatory)
- One-Touch Electric Awning with LED Light
- One-Touch Electric Front Stabilizer Jacks
- AM/FM/CD/DVD Bluetooth Stereo System
- High Definition LED Television (Living Area)
- 50 AMP Electrical Service
- Wired and Framed For 2nd A/C in Bedroom
- Detachable Power Cord with LED Light
- Power Rear Stabilizer Jacks
Endless Summer Package
- Residential Cabinetry
- Solid Surface Countertops
- Aluminum "Tread Lite" Entry Steps
- Metal Slam Baggage Doors with Magna Latch
- 8 Cu.Ft. Double Door Refrigerator
- 17.8 Gal./Hr. Quick Recovery Water Heater
- Porcelain Toilet with Foot Pedal Flush
- High-Rise Faucet with Pullout Sprayer
- Universal All-In-One Docking Station
- Black Tank Flush
- Radius Fireplace
Arctic Four Seasons Protection Package
- 35k BTU High Capacity Furnace
- Double Insulated Roof and Front Cap
- Thermofoil Wrapped Frame and Subfloor (Beneath Main Holding Tanks)
- Heated and Enclosed Underbelly
- Heated and Enclosed Dump Valves
- Zero Degree Extended Season Enjoyment
Options
- Free Standing Table and Chairs
- Dual Pane Windows
- 60" Tri-Fold IPO Theatre Seating (Bunk Models)
- 2nd A/C 15k BTU Ducted
- King Bed (Bed Slide Models)
Please see us for a complete list of features and available options.
All standard features and specifications are subject to change.
